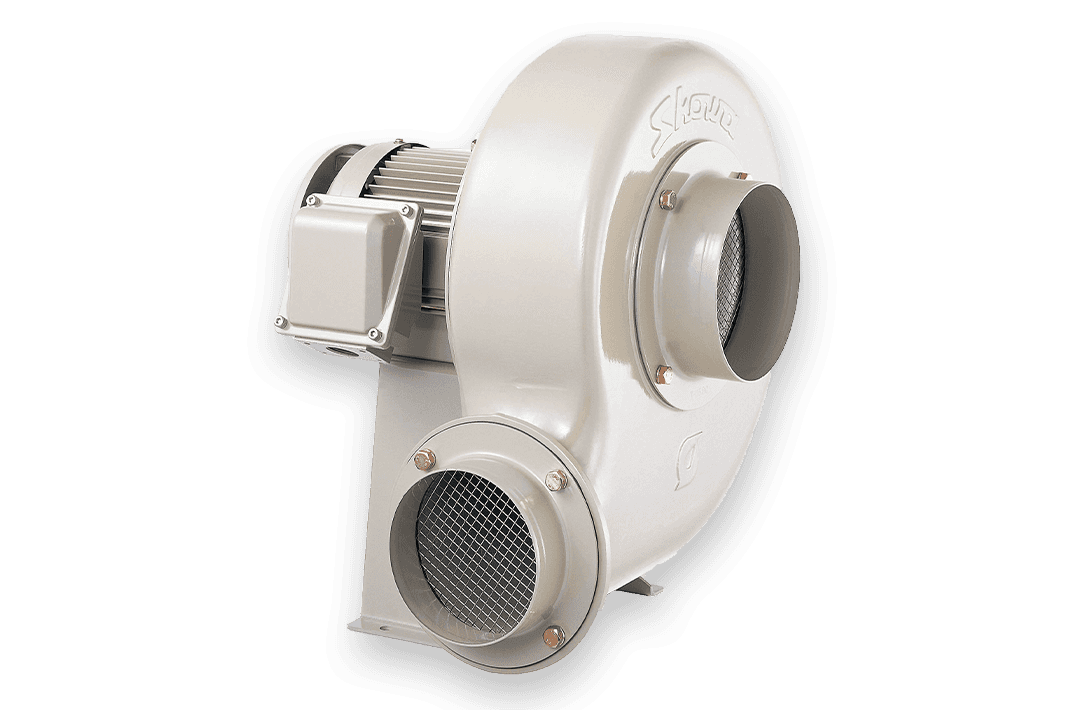

SHOWA昭和电机    鼓风机防爆系列   ME-U100B-H35

SHOWA昭和电机    鼓风机防爆系列   ME-U100B-H35



Model ( → Model explained )ME-U100B-H35
Impeller ( → Impeller Type )Turbo
Discharge Port Size (mm)Φ100
Intake Port Size (mm)Φ148
PhasesThree phase
Output (kW)1.5
Standard Voltage (V)200
50HzCurrent (A)6.2
Maximum Airflow (m3/min)14
Maximum Static Pressure (kPa)5.80
60HzCurrent (A)-
Maximum Airflow (m3/min)-
Maximum Static Pressure (kPa)-
Weight (Kg)42
Maximum Intake Temperature (℃)40
Bearing NumberImpeller Side-
Non-Impeller Side-
MaterialCasingADC12
ImpellerA5052P
